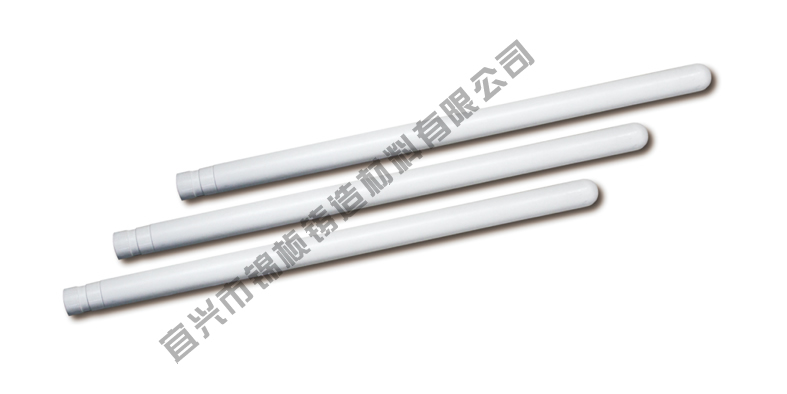

氮化硅保護管

【技術參數】

材質：氮化硅

特性：不粘鋁

外觀：灰色

密度：＞1.9g/cm3

抗折強度：＞80Mpa

導熱率：100W/m.k

膨脹系數：2.0*10-6K-1

工作溫度：900℃（空氣污染）   1800℃（惰性及真空）

體積電阻率：1014-1015（*cm）

使用壽命：六個月

注意事項：無敲擊、碰撞

【產品說明】

氮化硅保護管優點有高于其他產品的抗折的強度和抗氧化性能。最高使用溫度達1800℃。另外除了其本身的結構特性，產品還具有良好的耐磨性能和對金屬溶液的抗腐蝕的性能，所以產品可以直接與鋁鋅銅鎂溶液接觸，不粘鋁陶瓷保護管已成功用于溫度測量。擁有其他耐火材料所不具備的特性，如高溫抗折，有意的高負荷載重和耐磨等性能。

【產品特點】

1、  優良的抗氧化性能

2、  良好的耐磨性

3、  優異的抗腐蝕性

4、  高溫抗折

5、  優異的高負荷載重

6、  不粘鋁液

[technical parameters]

Material:Ceramic

Characteristic:non adhesive aluminum

Appearance:white

Density: ﹥1.9g/cm3

Bending strength: ﹥80Mpa

Thermal conductivity:100 W/m.k

Expansion coefficient:2.0*10-6K-1

Working temperature:900 degrees C (air pollution) 1800

Volume resistivity: 1014-1015(*cm)

Service life: Six months

Note: do not knock, collision

[product description]

The silicon nitride protective tube has higher bending strength and oxidation resistance than other products. Maximum operating temperature of 1800. Also inaddit-ion to its own structure characteristics, the product also has good wear resistance and on the metal solution corrosion resistant performance, so the product can di-rectly with aluminum, zinc, copper and magnesium solu-tion contact, adhesion of aluminum ceramic protection tube has been successfully used for temperature meas-urement. Have other properties, such as high temperature resistance, high load capacity and wear resistance, etc..

[product features]

1, excellent antionxidant properties

2, good wear resistance

3, the purpose of corrosion resistance

4, high temperature resistance

5, excellent high load

6, non stick aluminum liquid
